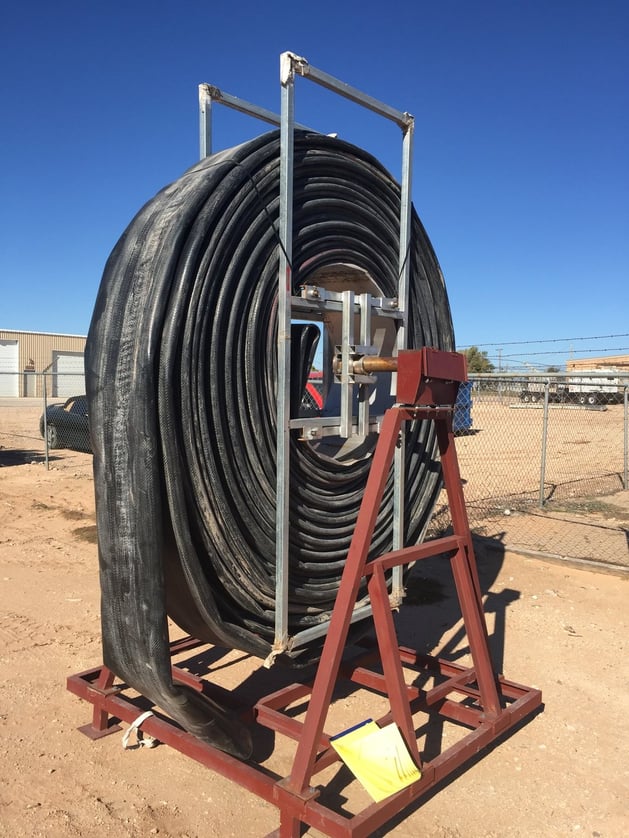

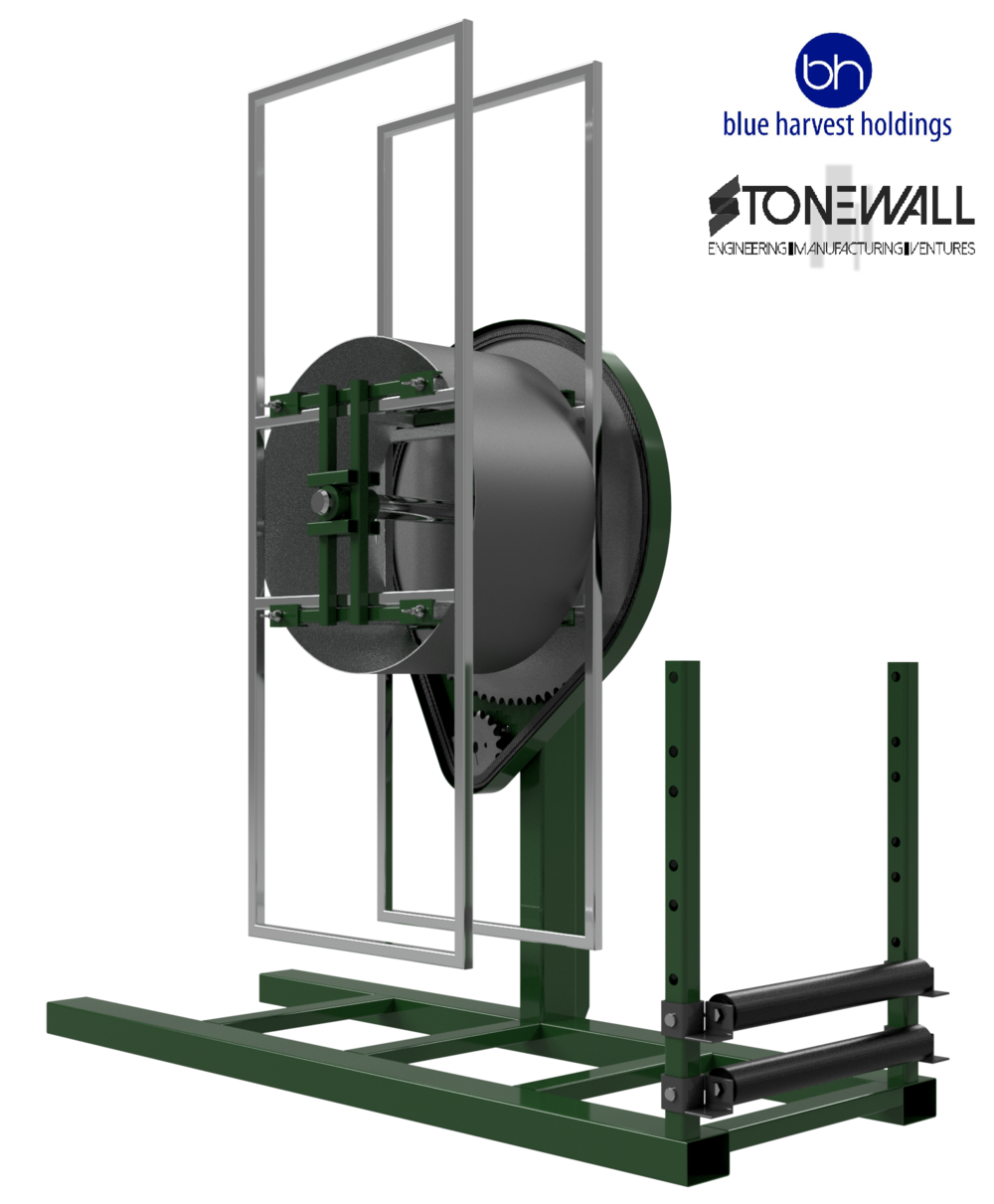

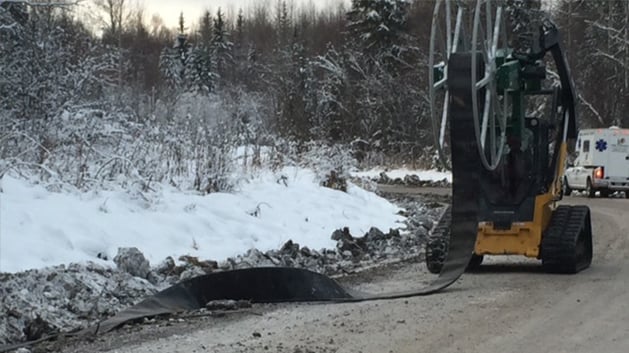

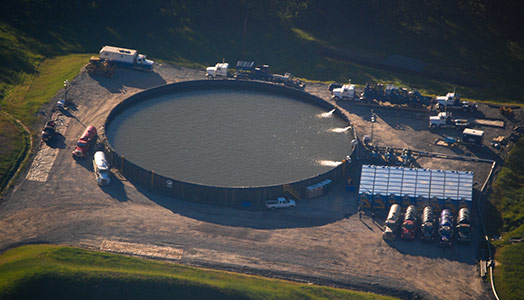

--- title: "Midland, Tx: Water Transfer Reel Design" description: "Midland, Tx: Water Transfer Reel Design" image: https://eng-pes.com/hubfs/Imported_Blog_Media/Raptor_Hose_Reel_2017-Mar-02_02-13-29AM-000_CustomizedView13554140242-3.png --- 1 min read # Midland, Tx: Water Transfer Reel Design [ Admin ](https://eng-pes.com/blog/author/admin) July 10, 2026 [StoneWall Projects](https://eng-pes.com/blog/tag/stonewall-projects) # The Problem A [customer in Midland, Tx](https://www.apachecompanies.com/news/we-are-off-to-west-texas-for-a-pipeline-compressor-station-job) needed an [unconventional solution](https://eng-pes.com/free-ebook-unconventional-problem-solving) to a common problem. [StoneWall](https://www.stonewallco.com) was tasked with designing that solution.  The problem involved the deployment and retrieval of layflat hose for water transport. Our customer needed a [unique oilfield design](http://www.stonewallco.com/design-and-drafting/) that would be able to easily adapt to their current equipment. If you want to know how we can help you [contact us](https://eng-pes.com/contact) below.  ![Raptor_Hose_Reel_2017-Mar-02_02-13-29AM-000_CustomizedView13554140242-4.png](https://eng-pes.com/hubfs/Imported_Blog_Media/Raptor_Hose_Reel_2017-Mar-02_02-13-29AM-000_CustomizedView13554140242-4.png) # The Design Process The equipment needed to be light, fast, and easily adapt to their existing forklift hydraulics.  The first part of the process involved a trip to Midland, Tx in order to reverse [engineer](http://www.stonewallco.com/engineering/) the hose reel to be designed around. Once the trip was complete, we used hand sketches and picture to initiate our design via Autodesk Inventor and Fusion 360. StoneWall was able to solve the customer's perceived problem through [structural](http://www.stonewallco.com/engineering/), [mechanical](http://www.stonewallco.com/engineering/), and [hydraulic design](http://www.stonewallco.com/design-and-drafting/). We delivered a [full engineering package](https://eng-pes.com/blog/from-napkin-sketch-to-successful-innovative-solution) which included manufacturing prints, full Bill of Materials (BOM), [engineering calculations](http://www.stonewallco.com/engineering/), and [finite element analysis](https://eng-pes.com/stonewall-finite-element-analysis) (FEA). ![layflat hose](https://eng-pes.com/hs-fs/hubfs/Imported_Blog_Media/img-27.jpg?width=629&name=img-27.jpg "layflat hose") # Water Transfer ![water transfer application](https://eng-pes.com/hs-fs/hubfs/Imported_Blog_Media/img-33.jpg?width=629&name=img-33.jpg "water transfer application") During the drilling and completions process of unconventional (horizontal) wells to access oil and gas resources, an average well requires a substantial amount of water to be brought both to and from the well pad for hydraulic fracturing. Trucking the water can be complicated, highly variable, and expensive. To mitigate these issues, operators utilize a network of pipe connecting multiple pad locations, pits, tanks, water sources, treatment facilities and disposals. This system provides a seamless network for water supply and re-use.  ![water transfer frac site](https://eng-pes.com/hs-fs/hubfs/Imported_Blog_Media/DSC_5559-2000x1325-3.jpg?width=524&name=DSC_5559-2000x1325-3.jpg "water transfer frac site") *[STONEWALL ENGINEERING](http://info.stonewallco.com/contact): Mechanical Engineering Lafayette La, Mechanical Engineer Lafayette La, Mechanical Design Lafayette La, Lafayette La Engineering Firms, 3D modeling Lafayette La, 2D to 3D Conversion, Solidworks Lafayette La, Engineering Design Lafayette La, Inventor Lafayette La, 3D Design, Downhole Tools, Unconventional Engineering* - [Tweet](https://twitter.com/share) [![StoneWall | Free 3D Concept Design](https://eng-pes.com/hubfs/Imported_Blog_Media/Autodesk-Fusion-360-00.jpg) ](https://eng-pes.com/blog/free-3d-concept-design) 1 min read #### [StoneWall | Free 3D Concept Design](https://eng-pes.com/blog/free-3d-concept-design) [Admin](https://eng-pes.com/blog/author/admin) : Jul 10, 2026 7:32:05 AM DO YOU HAVE A NEW CONCEPT YOU WANT DESIGNED? StoneWall is now offering free 3D concept designs for all eligible ideas. Sign up today to initiate... [StoneWall Projects](https://eng-pes.com/blog/tag/stonewall-projects) [Read More](https://eng-pes.com/blog/free-3d-concept-design) [![Wetland Restoration: Mud Barge Design](https://eng-pes.com/hubfs/Imported_Blog_Media/3096764_1463645091153_620x449-3.jpg) ](https://eng-pes.com/blog/2017/5/16/mud-barge-design) 1 min read #### [Wetland Restoration: Mud Barge Design](https://eng-pes.com/blog/2017/5/16/mud-barge-design) [Admin](https://eng-pes.com/blog/author/admin) : Jul 10, 2026 7:41:15 AM Perceived Problem: The only way to perform wetland restoration projects is with a Marsh Buggy. (Image below) Operators have to settle with the lack... [StoneWall Projects](https://eng-pes.com/blog/tag/stonewall-projects) [Read More](https://eng-pes.com/blog/2017/5/16/mud-barge-design) [![Dissolvable Frac Plug Design: Product Optimization for Downhole Tools](https://eng-pes.com/hubfs/Imported_Blog_Media/img-28.jpg) ](https://eng-pes.com/blog/2017/1/21/dissolvable-frac-plug-design-product-optimization-downhole) 1 min read #### [Dissolvable Frac Plug Design: Product Optimization for Downhole Tools](https://eng-pes.com/blog/2017/1/21/dissolvable-frac-plug-design-product-optimization-downhole) [Admin](https://eng-pes.com/blog/author/admin) : Jul 10, 2026 7:41:10 AM Stonewall was engaged by a customer in order to solve their issues with their current... [StoneWall Projects](https://eng-pes.com/blog/tag/stonewall-projects) [Read More](https://eng-pes.com/blog/2017/1/21/dissolvable-frac-plug-design-product-optimization-downhole) ```json { "@context" : "https://schema.org", "@type" : "BlogPosting", "author" : { "@type" : "Person", "name" : "Admin", "url" : "https://eng-pes.com/blog/author/admin" }, "dateModified" : "2026-07-10T12:40:15.250Z", "datePublished" : "2026-07-10T12:40:15.000Z", "headline" : "Midland, Tx: Water Transfer Reel Design", "image" : [ "https://eng-pes.com/hubfs/Imported_Blog_Media/Raptor_Hose_Reel_2017-Mar-02_02-13-29AM-000_CustomizedView13554140242-3.png" ], "mainEntityOfPage" : { "@id" : "https://eng-pes.com/blog/2017/3/2/midland-tx-water-transfer-reel-design", "@type" : "WebPage" }, "publisher" : { "@type" : "Organization", "logo" : { "@type" : "ImageObject", "url" : "https://eng-pes.com/hubfs/New%20PES%20Logo.png" }, "name" : "Practical Engineering Solutions" } } ```
